Philip DFM100 M3543A / 989803196431 PADDLE

Philip DFM100 M3543A / 989803196431 PADDLE

1. Model & Compatibility

• Paddle Part No.: M3543A / 989803196431
• Compatible Device: Philip Efficia DFM100, HS Intrepid
• Type: Reusable external adult / paediatric combination defibrillation paddles

2. Clinical Energy & Shock Waveform

• Adult mode (≥10 kg): Max shock energy 200J
• Paediatric mode (<10 kg): Automatic low energy output (≤50J)
• Waveform: Biphasic Truncated Exponential (BTE)
• Automatically adjust output by patient thoracic impedance
• Impedance detection range: 25 Ω – 250 Ω (external)

3. Structural & Functional Features

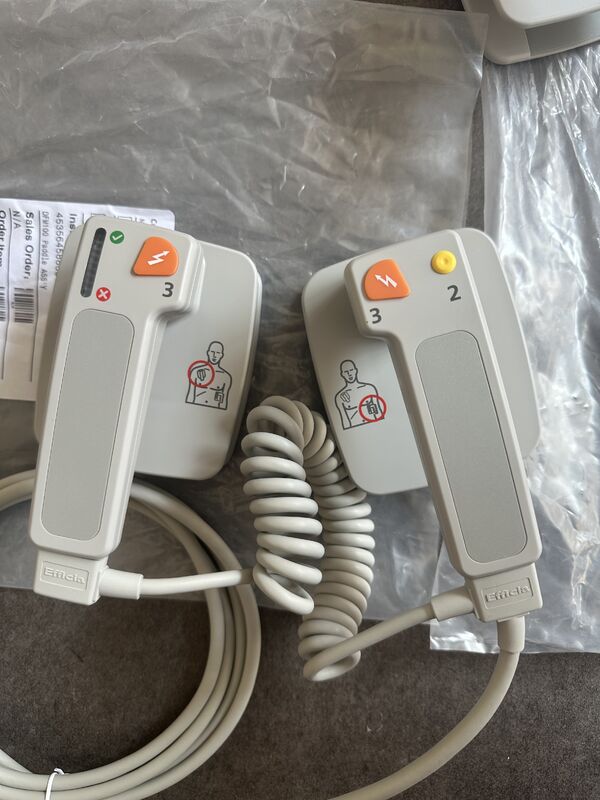

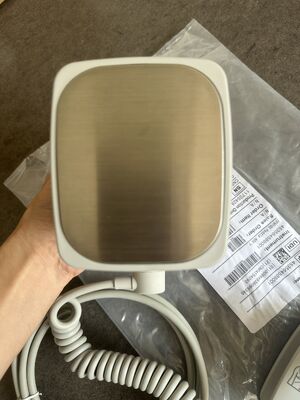

• Integrated dual-surface design: Adult large electrode surface + built-in paediatric small electrode surface
• Right sternum paddle: Equipped with PCI contact indicator light

  Green = good skin contact; Orange / Red = poor contact
• Left apical paddle: With remote charge button
• Both paddles with orange synchronous shock discharge buttons
• Built-in 2-lead ECG acquisition for arrhythmia analysis

4. Electrical & Physical Parameters

• Sensing signal: 500nA RMS / 571Hz; 200μA RMS / 32kHz
• Safety classification: BF type, defibrillation-proof
• Cable length: Approx. 2.5 m
• Reusable & sterilizable

5. Disinfection Requirements

• High-temperature high-pressure sterilization: Up to 134°C
• Supported chemical disinfection and wipe disinfection
• Repeatedly autoclavable for clinical long-term use
